Spire Pumps

Spire pumps are indigenously designed and manufactured by SyncUP Labs. In line with its goal to come up with world class engineering products, SyncUP Labs has bought to you high performing, state-of-the-art cost effective Spire Pumps. These are backed up by our all India Partner Network for Sales and supports.

Applications

Suitable for handling clear liquids for applications in Water Supply, Sprinkling, Fire Fitting, Air Conditioning, Booster Plants, Boiler Feed Water, Condensate delivery, Irrigation, auxiliary process in Textile, Paper, Sugar, Cellulose and Food industries.

Specifications

  • End Suction Centrifugal Pump Designed to ISO 5199 (16 bar)
  • Horizontal Back - Pull - Out End Suction Radially Split Volute Casing Centrifugal Pump Single Stage
  • Radial Impeller, Flanges as per AISI 125 FF

Specifications

  • Flow Rate: Up to 250 M3/hr
  • Head: Up to 90 MWC
  • Operating Pressure: 16 bar
  • Operating Speed: 1450 RPM & 2900 RPM
  • Operating Temperature: 4°C to 90°C
  • Shaft Sealing: Normal Cland Packing/Mechanical Seal
  • Direction of Rotation: Clockwise Viewed from Drive End

Material of Construction

  • Volute Casing: Cast Iron Gr FG 260 / Stainless Steel CF8 / Stainless Steel CF8M
  • Impeller: Cast Iron Gr FG 260 / Stainless Steel CF8 / Stainless Steel CF8M
  • Discharge Cover: Cast Iron Gr FG 260 / Stainless Steel CF8 / Stainless Steel CF8M
  • Bearing Bracket: Cast Iron Gr FG 200
  • Pump Shaft: IS 5517 Gr 45C8
  • Shaft Protection Sleeve: AISI410 / AISI 304 / AISI 316

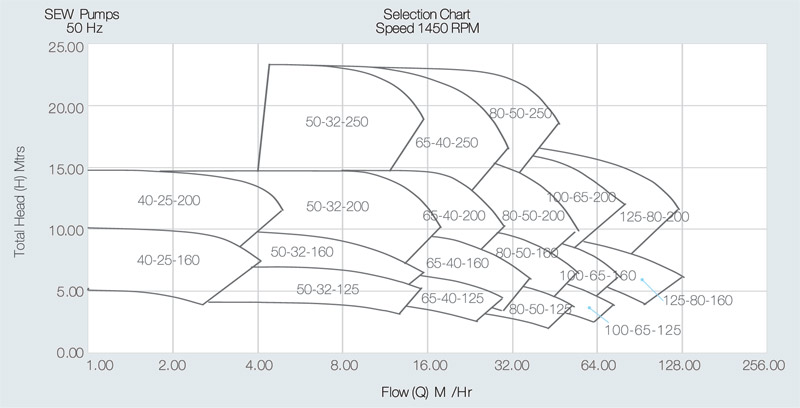

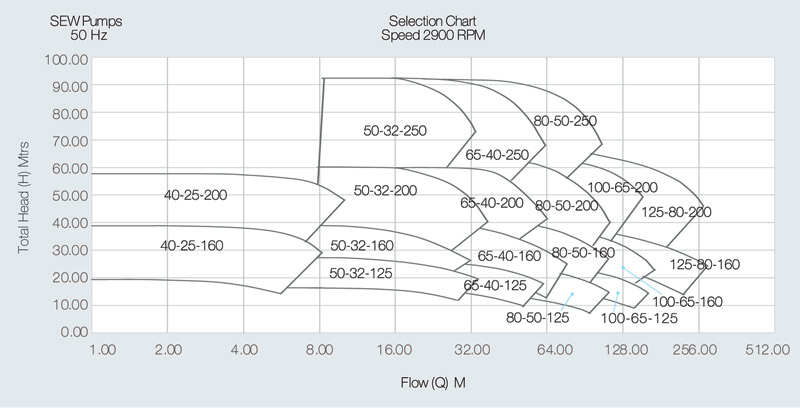

Selection Charts
